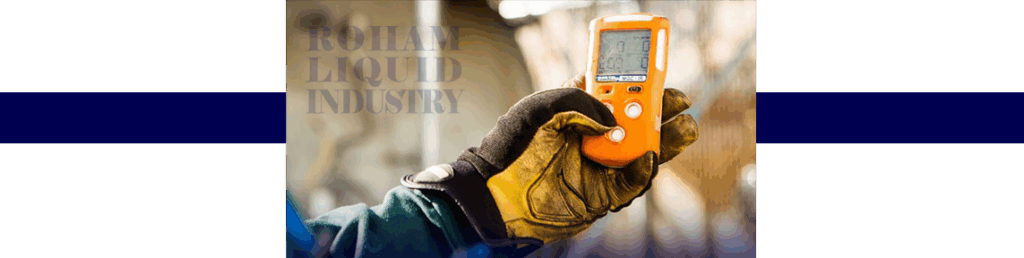

Carbon Dioxide (CO₂) Purity Measurement Device

This device is used to measure the purity of carbon dioxide (CO₂) in gas samples or gas mixtures. Various methods are available for determining CO₂ purity, with the most common including Gas Chromatography (GC), Infrared (IR) Spectroscopy, and Electrochemical Analyzers.

Measuring CO₂ is crucial for indoor air quality monitoring, respiratory performance assessment (e.g., capnography devices), and numerous industrial processes.

What is CO₂ Purity?

CO₂ purity refers to the volumetric or weight percentage of carbon dioxide in a gas sample or mixture. It indicates how much of the gas consists of pure CO₂ and how much is made up of impurities. Common impurities in CO₂ may include water vapor, hydrocarbons, oxygen, nitrogen, and trace gases. Higher purity levels indicate fewer contaminants, making the gas suitable for applications that require high-grade, uncontaminated CO₂.

Why CO₂ Purity Matters

Safety in Food and Beverage Industry
– Impurities such as sulfur dioxide (SO₂) or hydrocarbons can adversely affect taste and aroma.
– In carbonated beverages, low-purity CO₂ may result in off-flavors.
Medical and Respiratory Applications
– In anesthesia and artificial respiration devices, toxic impurities (e.g., CO) pose serious risks to patient safety.
– Medical-grade CO₂ must achieve 99.99% purity to ensure it is safe for human use.
Quality in Chemical and Pharmaceutical Production
– Impurities can interfere with chemical reactions during pharmaceutical synthesis.
– For the production of carbonates and bicarbonates, CO₂ must be free from acidic gases.
Enhanced Performance in Welding Systems (MIG/MAG)
– Impure CO₂ can cause porosity in welds and reduce joint strength.
– High-purity CO₂ (at least 99.8%) is essential for producing strong, high-quality welds.
Medical and Industrial CO₂ Lasers
– CO₂ lasers used in surgery and metal cutting require ultra-pure gas (99.999%) for stable performance.
– Impurities reduce laser efficiency and can damage equipment.

Quality in Dry Ice Production
– Dry ice made from impure CO₂ sublimates faster and is less stable.
– In food and medical transport, CO₂ purity directly affects product preservation.

Types of CO₂ Purity Measurement Devices and Their Operating Principles

Accurate CO₂ purity measurement is critical across industries such as food, healthcare, oil & gas, electronics, and environmental monitoring. Various instruments have been designed for this purpose, each operating on specific principles. Here are the main types:

Gas Chromatography (GC)

Operating Principle:
– The gas sample is injected into the GC system and carried by a carrier gas (typically helium or nitrogen) through a chromatographic column.
– Different gas components, including CO₂ and impurities, are separated based on their interaction with the stationary phase in the column.
– After separation, CO₂ is detected using a detector (e.g., TCD or FID) and its concentration is quantitatively measured.

Topic	Details
Applications:	– Pharmaceutical Industry- Gas Refineries- Scientific Research
Advantages:	– Very high accuracy, even at low concentrations- Simultaneous detection of multiple gases- Suitable for quality control laboratories
Disadvantages:	– Requires precise calibration- Time-consuming analysis- High equipment and maintenance costs

Non-Dispersive Infrared Spectroscopy (NDIR)

Principle of Operation:

CO₂ molecules absorb infrared (IR) light at a wavelength of 4.26 µm.
The device directs an IR beam through the sample and measures the amount of absorption.
The higher the CO₂ concentration, the greater the absorption of the IR light.

Topic	Details
Principle of Operation	– CO₂ molecules absorb infrared (IR) light at 4.26 µm wavelength.- The device emits an IR beam through the sample and measures absorption.- Higher CO₂ concentration results in greater light absorption.
Applications	– Emission control systems- Greenhouses- Beverage industry
Advantages	– Fast and continuous measurement- Non-destructive sampling- Suitable for industrial environments
Disadvantages	– Can be affected by other gases with similar absorption (requires filtration)- Lower accuracy at very low concentrations

Electrochemical Sensors

Principle of Operation:

CO₂ gas reacts with the electrolyte inside the sensor, generating an electric current.
The magnitude of the current is directly proportional to the CO₂ concentration.

Category	Details
Applications	Environmental monitoring; HVAC systems; Smart agriculture
Advantages	Portable and lightweight; Low cost; Fast response
Disadvantages	Limited lifespan (typically 1–3 years); Requires periodic calibration; Lower accuracy compared to GC and NDIR

Mass Spectrometer (MS) Analyzer

Principle of Operation:

The gas sample is ionized and separated based on its mass-to-charge ratio (m/z).
CO₂ has a specific m/z value (~44) and can be distinguished from impurities.

Category	Details
Applications	Semiconductor industry; Space research; Advanced laboratories
Advantages	Extremely high accuracy; Ability to detect trace impurities (even ppb)
Disadvantages	Very high cost; Requires skilled operator

Ultrasonic Analyzers

Principle of Operation:

The speed of ultrasonic waves traveling through the gas depends on the CO₂ concentration.
By measuring variations in wave speed, the gas purity is determined.

Category	Details
Applications	Petrochemical industry; Gas transmission systems
Advantages	No direct contact with gas; Resistant to contamination
Disadvantages	Low sensitivity to minor impurities

Tunable Diode Laser Absorption Spectroscopy (TDLAS) Devices

Principle of Operation:

A diode laser emits light at a wavelength specifically absorbed by CO₂.
The amount of light absorbed determines the CO₂ concentration.

Category	Details
Applications	Industrial flue gas monitoring; Atmospheric research
Advantages	High accuracy; Measurement possible under varying pressure and temperature
Disadvantages	Relatively high cost

Titration Methods

Principle of Operation:

The gas sample is absorbed in a suitable solution (e.g., KOH).
Changes in pH or electrical conductivity are measured to calculate the CO₂ concentration.

Category	Details
Applications	Educational laboratories; Chemical industries
Advantages	Simple; Low cost
Disadvantages	Time-consuming; Cannot measure continuously

Summing up and choosing the best device

Device	Accuracy	Speed	Cost	Main Application
Gas Chromatography (GC)	Very High	Medium	High	Advanced laboratories
NDIR	High	Fast	Medium	Food industry & environmental monitoring
Electrochemical Sensor	Medium	Fast	Low	Environmental monitoring
Mass Spectrometer (MS)	Extremely High	Fast	Very High	High-tech industries
Ultrasonic Analyzer	Medium	Fast	Medium	Oil & gas industry

Applications of CO₂ Purity Measurement Devices

Food and Beverage Industry
- Quality Control in Carbonated Beverages: Even minor impurities in CO₂ can affect taste and shelf life. Impurities such as sulfur dioxide (SO₂) or hydrocarbons can deteriorate the flavor of drinks. Therefore, food- and beverage-grade CO₂ must comply with strict safety and quality standards to ensure it is free from harmful contaminants.
- Modified Atmosphere Packaging (MAP): Pure CO₂ prevents food spoilage and extends shelf life.
Medical and Hospital Applications
- Medical and Anesthetic Gases: CO₂ with ≥99.99% purity is used in artificial respiration devices and surgical lasers. Even trace impurities can be harmful, making strict pharmaceutical standards essential.
- Laboratory Incubators: Accurate CO₂ concentration control is critical for cell culture applications.
Scientific Research and Environmental Monitoring
- Climate Change and Greenhouse Gas Monitoring: CO₂ measurement in the atmosphere is vital for climate studies.
- Carbon Capture and Storage (CCS): Ensuring CO₂ purity before underground injection is essential.
- Research-Grade CO₂: High-purity CO₂ is required in laboratory experiments, where even trace impurities can affect results. This grade is often used in gas chromatography and other high-precision techniques.
Welding Industry (MIG/MAG)
- Shielding Gas: CO₂ with ≥99.8% purity is used in arc welding to prevent metal oxidation.
- Porosity Prevention: Impurities can weaken weld joints.
Dry Ice Production
- Purity Control: Impurities reduce the quality and stability of dry ice.
- Food and Medical Transport: High-purity CO₂ is used for safe cooling and preservation.
Oil, Gas, and Petrochemical Industries
- Enhanced Oil Recovery (EOR): Injection of pure CO₂ into wells improves extraction efficiency.
- Exhaust Gas Monitoring: CO₂ measurement in combustion processes helps control emissions.
Fire Suppression Systems
- CO₂ Cylinder Quality: Impurities can reduce system effectiveness.
- Automatic Fire Suppression Monitoring: Ensures proper CO₂ concentration for extinguishing fires.
Electronics and Semiconductor Industry
- Silicon Wafer Cleaning: Ultra-high-purity CO₂ (≥99.999%, 5N) prevents chip contamination.
- Industrial Lasers: Pure CO₂ improves laser performance in cutting and engraving applications.
Agriculture and Greenhouses
- CO₂ Enrichment: Precise CO₂ control (typically 800–1200 ppm) enhances photosynthesis and plant growth.
- Storage Monitoring: Prevents spoilage of fruits and vegetables during storage.
Pharmaceutical and Biotechnology Industries

Carbon-Based Drug Production: High-purity CO₂ is used in chemical synthesis.
Fermentation Processes: CO₂ control is critical for producing antibiotics and vaccines.

CO₂ Sensor Maintenance Guidelines

Regular maintenance is essential. Avoid exposing the sensor to dust or debris.
If the CO₂ sensor is unused for extended periods, power it off and store it in a dry, clean environment.
Model specifications and circuit parameters should remain unchanged during maintenance, and all repairs should be performed by qualified personnel.
Calibration and alert settings should be checked regularly, with a recommended adjustment interval of no more than 15 days.
During normal operation, the sensor must be calibrated and inspected periodically to ensure accurate monitoring. Sensors should be replaced if they fail to provide reliable readings.

CO₂ sensors are critical tools for measuring gas concentrations in air and biological processes. Their applications provide fundamental information for chemistry, medicine, biology, geology, and climate research. While many CO₂ measurement methods are described in the scientific literature, only a few are practically adopted. The principles and applications of CO₂ measurement focus on in-situ sensors, which can be directly integrated into industrial or laboratory processes.
